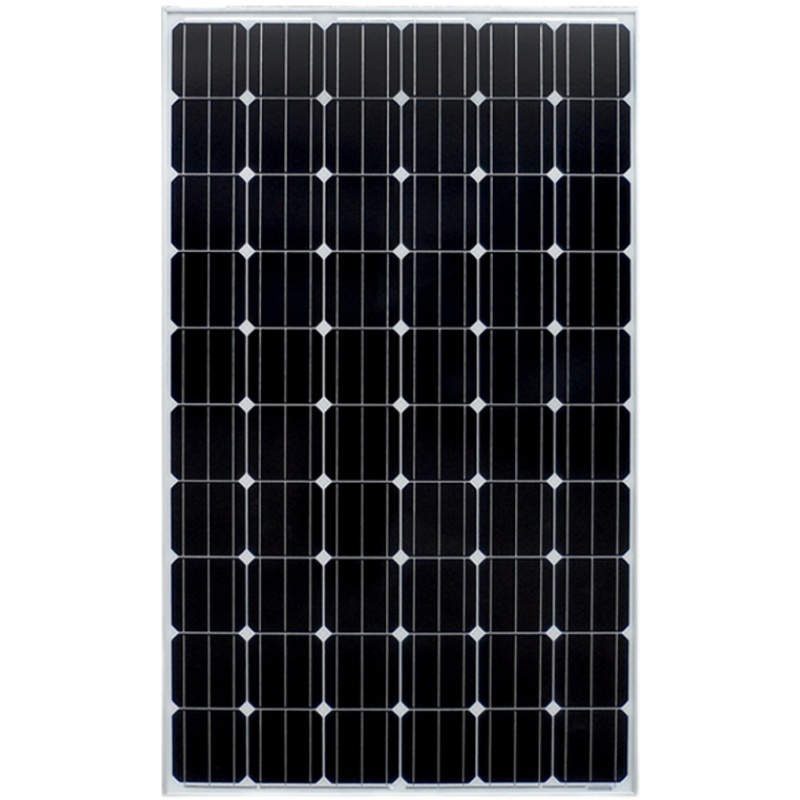

PV3
PV3
PV3
￥0.00
- Detail
- Parameters
Mechanical Parameters
Layout:
144（6×24）
Junction box:
Split junction box, IP68, 3 diodes
Weight:
32.6kg
Size:
2278×1134×35mm
Packaging:
31 pcs./pallet 155 pcs./20GP 620 pcs./40 GP
Electrical Performance Parameters (STC Test)
Maximum power (Pmax/W)
545
550
555
Open-circuit voltage (Voc/V)
49.65
49.80
49.95
Short circuit current (Isc/A)
13.92
13.99
14.05
Peak power voltage (Vmp/V)
41.80
41.95
42.10
Peak power current (Imp/A)
13.04
13.12
13.19
STC: Standard test conditions
Electrical Performance Parameters (NOCT Test)
Maximum power (Pmax/W)
407.4
411.1
414.8
Open-circuit voltage (Voc/V)
46.68
46.82
46.97
Short circuit current (Isc/A)
11.23
11.29
11.34
Peak power voltage (Vmp/V)
39.00
39.14
39.28
Peak power current (Imp/A)
10.45
10.51
10.56
NOCT: Normal operating cell temperature
Load Capacity
Maximum static load on the front (such as snow and wind)
5400Pa
Maximum static load on the back (such as wind)
2400Pa
Hail test
Diameter 25 mm, impact speed 23 m/s
Temperature Coefficient (STC test)
Temperature coefficient of short circuit current (Isc)
+0.050%/℃
Temperature coefficient of open circuit voltage (Voc)
-0.265%/℃
Temperature coefficient of peak power (Pmax)
-0.340%/℃
